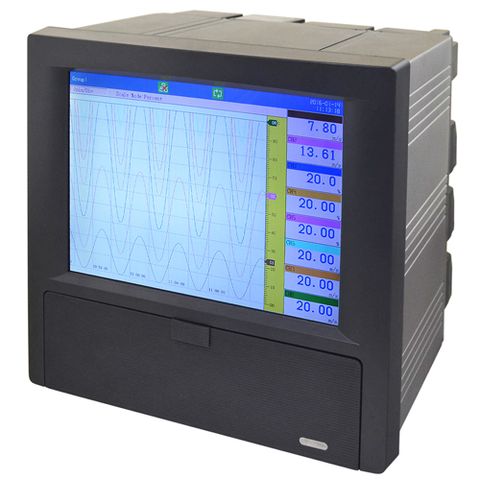

ALIA Paperless Recorder ARC1000 Series
http://www.alia-inc.com/en/index.asp
Last Update
Price:
R.F.Q.
ARC1000 Series Paperless Recorder features the most advanced technology. It highlights in various channels, complete function, easy operation, high accuracy, low consumption and high performance, overcoming the disadvantages of old paperless recorder of limited channels and large occupancy if several recorders are to be installed.
Share Product:
Detail
- DIN(288mm*288mm), 800*600 Pixels, TFT truecolor (LCD)
- 500MB built-in memory card, support long-term data record
- Common input signal: mA, include VDC, T/C, RTD, Hz etc.
- High accuracy ±0.15% of Reading
- Max. 24-points relay output, Max. 8-points 4-20mA output, Max. 6 points 24 VDC output
- Can receive input signals of max. 48 channels
- 24 VDC Aux. power supply, 2-wire system
- Display / Record Single-point, Multi-point, Trend, Totalizer and Bargraph
- Records can be save in USB memory & SD card and transferred to PC
- Ethernet communication, RS485/RS232 function
Specification
| Keyword | |
| Brand | |
| Origin | US |
